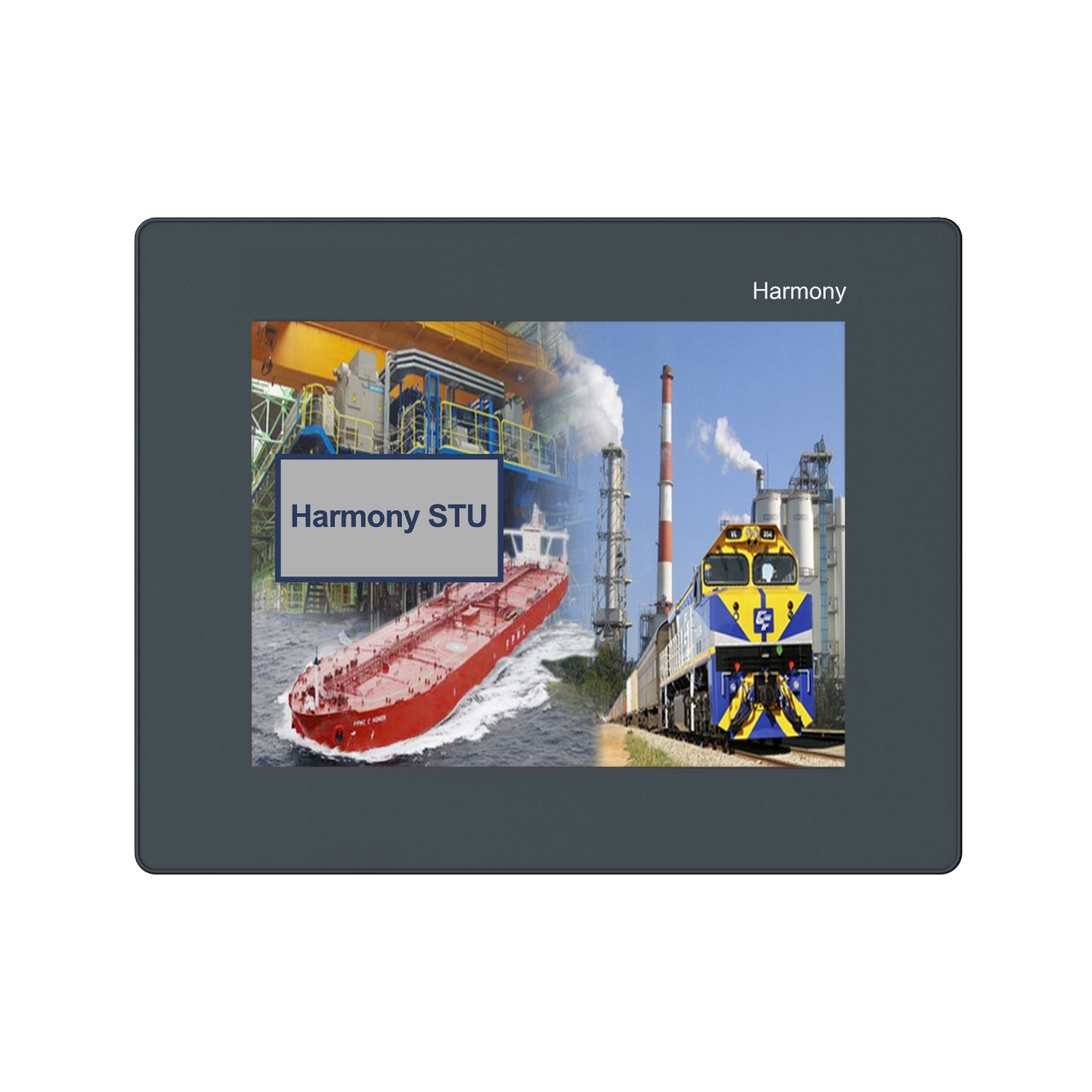

HMISTU855W Harmony Touchscreen Panel, 6.8 W, 5.7 in QVGA TFT Color Touchscreen Display

MFR:
Schneider Electric
MFR #:
HMISTU855W
Item #:
938154

Availability

Location Available Qty
Available Available to Order
$1,739.85 each

The touch panel screen features 5.7inch TFT color display, supports 320 x 240 pixels QVGA resolution. It is equipped with 1 USB 2.0 type mini B, 1 USB 2.0 type A, removable screw terminal block for power supply and COM1 serial link (female RJ45, RS232C/RS485 integrated). The screen supports Japanese (ANK, Kanji), Chinese (simplified Chinese), Taiwanese (traditional Chinese), Korean and ASCII character fonts. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It is an IP20/IP65 and NEMA 4X rated product. The enclosure is made of PC/PBT and PPA. Its dimensions are 163mm (width) x 56.5mm (depth) x 129.15mm (height). It is suitable for simple machines and infrastructure applications. This product is certified by CULus, C-Tick, UL class 1 Div2 T4A or T5 and Marine. It meets IEC 61000-6-2, UL 508, UL 1604, EN 61131-2 and FCC Class A standards. Harmony STO (fromerly known as Magelis STO) is powered by the EcoStruxure operator terminal expert and STU (fromerly known as Magelis STU) is powered by Vijeo Designer.

Manuals and Documentation
Catalog Number HMISTU855W
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin China
Made in USA No
Number of Pages Limited by interl memory capacity
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=258421059&lang=en-us
GTIN 03595864153315
